Shell Core Machines
Z95 & K8A Series
Z95 & K8A Series machines for resin-coated sand cores and shell molds.
Z95 Series

Z95 Series
The Z95 Series shell core machine is designed for the production of resin-coated sand cores. It features a robust structure, a high level of automation, and stable operation. An integrated sand scraper on the sand shooting head removes loose sand from the core box surface. After curing, the movable mold automatically rotates 90°, allowing the sand core to be removed automatically. The machine is equipped with perimeter safety guarding and offers pneumatic or hydraulic drive options. Electric or gas heating can be selected according to production requirements, with core box temperature regulated by a temperature controller.
Technical Data

K8A Series

K8A Series
The K8 Series shell core machine features a simple and robust structure, reliable operation, and high production efficiency. Its core box thickness is adjustable, and the door-opening design facilitates convenient sand core removal. Available with electric or gas heating, the machine can be configured to meet different foundry production requirements.

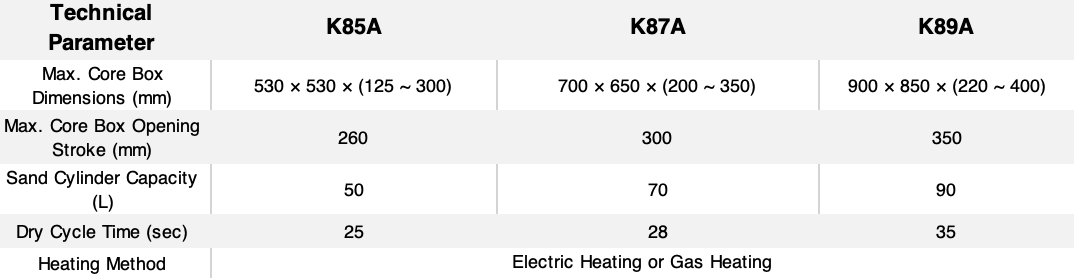

Technical Data

Need Help Selecting the Right Machine?
Send us your core drawing, core box dimensions, sand process and production requirements. We will evaluate the suitable machine and configuration.
